Video Digital Microscopy

Hirox main system is fully equipped with 500 GB hard drive, gigabit Ethernet, and 6 USB 2.0 ports. Moreover, it has a DVD/CD RW integrated in the main system besides all the light adjustment like brightness, contrast, frame rate, etc. Printing is as easy as connecting the main system to a picture. Bridge compatible printer with a USB cable. Exactly 30 years ago, the first video microscope was invented by Hirox. Today, strong with our tradition of high quality optical manufacturing, we are reinventing 3D Digital Microscopy to offer you an instrument which is easier, faster, and stronger than ever.

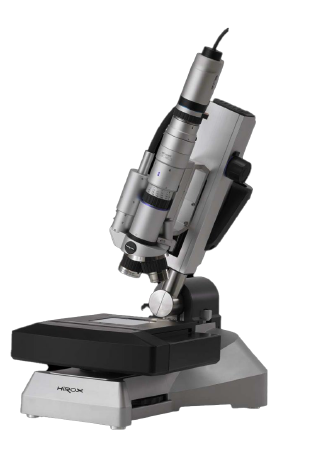

HRX01

The new Hirox masterpiece: the new motorized telecentric zoom lens HR-1020E is the result of over 40 years of optical manufacturing and engineering excellence. Combined with the RX-01, intelligent sensors compute in real time the lens zoom information, detect illumination adapters, register XY and Z position and record those conditions to redefine completely the user experience. Large aperture lens provides super high resolution and crystal clear image. Fully motorized zoom lens for easy operation and improved accuracy.

3D Imaging System

Simply adjust the profile slicer to visualize and measure any details on the 3D object: the profile created is like a virtual cross section allowing precise measurements. Using the profile measurement function, it’s very simple to measure height, volume, roughness, angle or radius for example by simply “drawing” a circle with 3 points.

Hirox Features


• User Friendly

Hirox KH-8700 brings automated functions such as focus control, multi-focus, and 3D profiling which
allow anyone to easily make repeatable observations with greater accuracy. All the revolution- ary
functions can be controlled through the user friendly display which is the result of extensive
ergonomic research.

• Working Distance & Depth of Field

All Hirox lens features long working distance, extended depth of field and high contrast even at
high magnifica- tion. For example at 160 X magnification 2016 series lenses has a 44 mm working
distance and at 10000 X magnification 10C lenses still has a 3.4 mm working dis- tance.

• Live Inspection

Smooth live images is provided by 30 frames/s high reso- lution CCD camera which is equivalent to
real time video with doable buffering.

Various Software Function

Hirox Software provides all the user with extensive features that may be desired. There is high
accuracy binarization display,  lighting  function,  contrast adjustment, strengthen edges, noise
removal,  split screen display, recording with the timer, record parameters, etc.

• Super fast USB3 connection to any PC

Freedom to choose Fast PC, Full HD Screen, Windows 7,
8 or 10, desktop or laptop*, via an ultra fast and universal USB3 connection up to 5Gb/s. The
obsolescence is therefore limited, and offers endless future updates. And thanks to the touch
screen you can enjoy an even higher comfort of use!

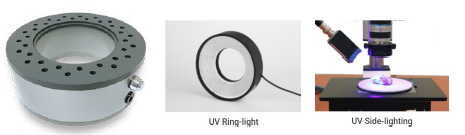

• Hirox Lens Adaptor

The drive to see the object more clearly through ad- vanced optical technology has resulted in an
extensive line of readily interchangeable adaptor units that extend the functionality of the
lenses.

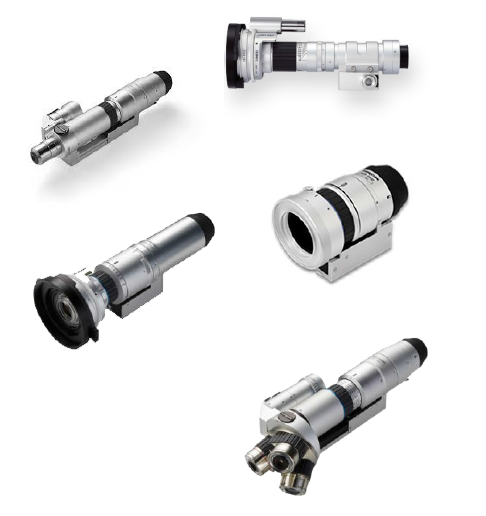

• Hirox Optics

As a lens maker, Hirox has developed extensive range of different optical lens from macro lens that has magnification of 1 to 60 times, continuous optical zoom lens which extended up to 10.000 x magnification (the highest in the market right now). The patented rotary head adapter allows observation of the conditions of the sides of the object without missing a spot. All these can be done without adjusting the focus and without rotating the lens itself. Another revolutionary development from hirox is ACS function (automated calibration system) that store calibration values for measurement. Thus, everytime operator change the magnification the calibration values will be selected automatically which prevent human error of selecting wrong measurement calibration.
